Todescato Hydrogen L45 Single Torch Welding System
Todescato Hydrogen L45 Single Torch Welding System
Available on Backorder
New
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Data Sheet
Product Description

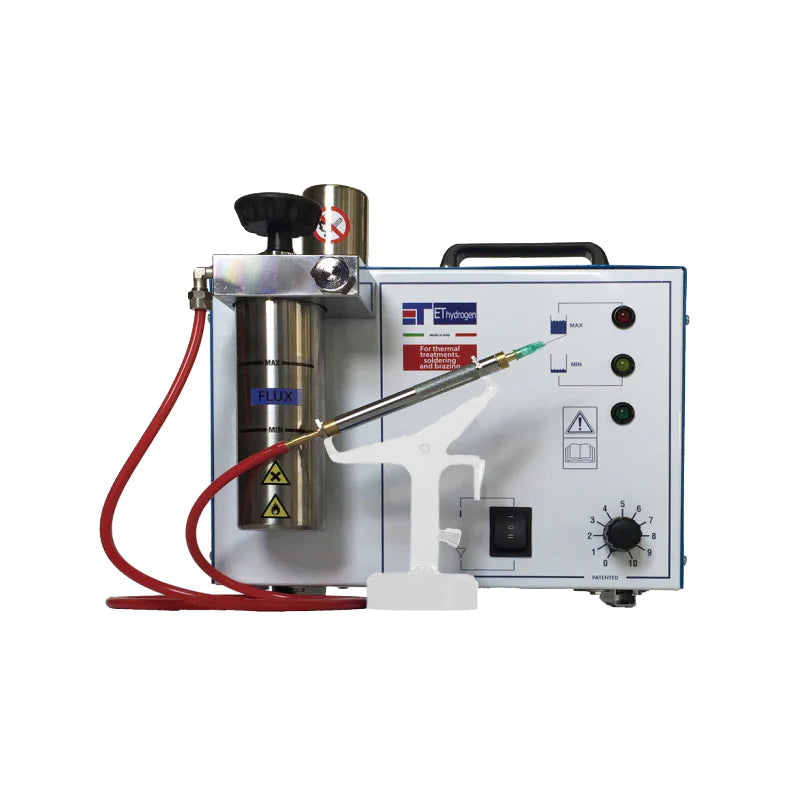

The Todescato L45 is a compact, single-torch hydrogen welding system used by bench jewelers for precision soldering and welding of gold, silver, and platinum. It runs on a KOH electrolyte solution in an internal tank — no gas cylinders required! The gas passes through a methanol-based flux in the booster tank before reaching the torch tip, which refines the flame for fine metalwork. At 3,200°C maximum, it has enough heat for platinum.
Features
- Runs on KOH electrolyte and deionized water. No gas cylinders or pressurized tanks!
- Reaches 3,200°C — suitable for platinum, gold, silver, and fine metals
- 6–8 hours of continuous operation per fill
- Push-pull ignition with visual status indicators
- Single torch outlet
- Made in Italy, CE approved
Required Chemicals:
Both are required to operate the L45.
Electrolyte (cell fluid) — choose one:
- Premixed: OKAI HF-8 (Item 8300833) — use 1/2 bottle for initial fill. Lasts approximately 1 year; top off with deionized water as the level drops.
- Mix your own: Dissolve 180g dry KOH in 0.445L deionized water (per Todescato L45 manual specifications).
Flux / Deoxidizer (booster) — choose one:
- Premixed: OKAI HF-9 (Item 8300834) — fill booster tank per instruction manual.
- Mix your own: Combine 1 liter Methanol (Item 8300040) with 15–20 grams Boric Acid (Item 830456). This is the Todescato Code 131 formula and is equivalent to HF-9.
- Important Compatibility: Do not use MEK in any Todescato system — MEK is an Aquaflame booster and is not compatible with Todescato hoses. Use only methanol-based flux as described above.
Setup Kit: The Hydrogen Torch Setup Kit (Item 8301085) includes measuring beakers, a graduated cylinder, a stirring rod, safety goggles, and disposable gloves — everything needed for safe electrolyte preparation.
| Specification | Details |
|---|---|
| Gas Production | 45 L/hr |
| Max Temperature | 3,200°C (5,792°F) — suitable for platinum |
| Continuous Use | 6–8 hours before refilling |
| Working Pressure | 1 bar |
| Machine Dimensions (W × D × H) | 28.5 × 23 × 29 cm |
| Weight | 14 kg (30 lbs) |
| Electrical | 115V, 1 Phase, 60 Hz |
| Torch Outlets | 1 |
| Origin | Italy, CE approved |
Elettronica Todescato S.r.l.- as a good practice standard - recommends replacing the Components in their entirety no later than 3 years from the first testing at our facility (the reference date can be found in the "date" field of the quality control testing sheet provided with each product sold).
